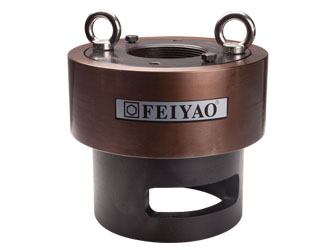

Product Features
- Suitable for single specification bolt tensioning, light weight and high precision.
- Small size and compact design.
- Can be equipped with manual hydraulic pump, pneumatic hydraulic pump, multiple tensioners can be used simultaneously

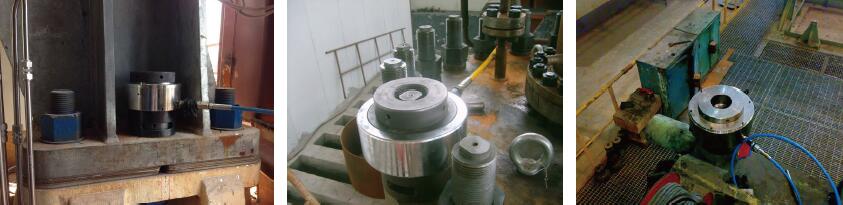

- Available range: ships, steel, petrochemical, electric power and other large equipment
- Standard working pressure: 150MPa

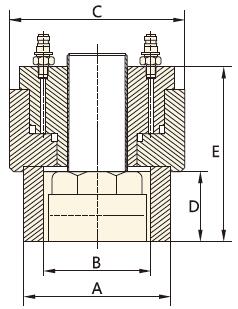

| Model | Thread Specification | Stroke | Max.Tensioning Force | Dimensions (mm) | |||||
| mm | inch | (mm) | (kn) | A | B | C | D | E | |
| FY-YLS-M16 | M16 | 5/8 | 10 | 126 | 37 | 41 | 52 | 16 | 72 |
| FY-YLS-M18 | M18 | 45/64 | 10 | 172 | 40 | 46 | 62 | 18 | 76 |
| FY-YLS-M20 | M20 | 51/64 | 10 | 208 | 42 | 51 | 66 | 19 | 78 |
| FY-YLS-M22 | M22 | 7/8 | 10 | 264 | 45 | 51 | 72 | 20 | 86 |
| FY-YLS-M24 | M24 | 1 | 10 | 327 | 49 | 59 | 78 | 22 | 88 |
| FY-YLS-M27 | M27 | 1 1/8 | 10 | 448 | 55 | 65 | 88 | 25 | 93 |
| FY-YLS-M30 | M30 | 1 1/8 | 15 | 448 | 61 | 72 | 98 | 27 | 93 |
| FY-YLS-M33 | M33 | 1 1/4 | 15 | 679 | 66 | 76 | 108 | 29 | 103 |
| FY-YLS-M36 | M36 | 1 3/8 | 15 | 810 | 71 | 80 | 118 | 32 | 108 |
| FY-YLS-M39 | M39 | 1 1/2 | 15 | 810 | 77 | 89 | 118 | 34 | 112 |
| FY-YLS-M42 | M42 | 1 5/8 | 15 | 917 | 83 | 91 | 126 | 37 | 114 |
| FY-YLS-M45 | M45 | 1 3/4 | 15 | 952 | 89 | 94 | 130 | 39 | 118 |
| FY-YLS-M48 | M48 | 1 7/8 | 15 | 1151 | 94 | 102 | 142 | 42 | 122 |
| FY-YLS-M52 | M52 | 2 | 15 | 1277 | 102 | 110 | 148 | 46 | 124 |
| FY-YLS-M56 | M56 | 2 1/4 | 15 | 1455 | 106 | 119 | 160 | 49 | 138 |
| FY-YLS-M60 | M60 | 2 3/8 | 15 | 1455 | 114 | 131 | 160 | 52 | 142 |
| FY-YLS-M64 | M64 | 2 1/2 | 15 | 1794 | 120 | 131 | 178 | 55 | 151 |
| FY-YLS-M68 | M68 | 2 3/4 | 15 | 1794 | 124 | 146 | 178 | 58 | 159 |
| FY-YLS-M72 | M72 | 2 7/8 | 15 | 2116 | 130 | 146 | 192 | 62 | 173 |
| FY-YLS-M76 | M76 | 3 | 15 | 2579 | 135 | 161 | 215 | 65 | 177 |
| FY-YLS-M80 | M80 | 3 1/4 | 15 | 2579 | 142 | 161 | 215 | 68 | 197 |
| FY-YLS-M85 | M85 | 3 3/8 | 15 | 2963 | 150 | 175 | 230 | 72 | 202 |
| FY-YLS-M90 | M90 | 3 1/2 | 15 | 3506 | 160 | 177 | 230 | 77 | 218 |
| FY-YLS-M95 | M95 | 3 3/4 | 15 | 3951 | 170 | 202 | 285 | 80 | 225 |
| FY-YLS-M100 | M100 | 4 | 15 | 4573 | 178 | 212 | 285 | 85 | 225 |
