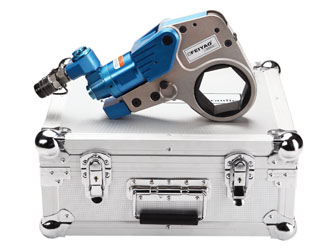

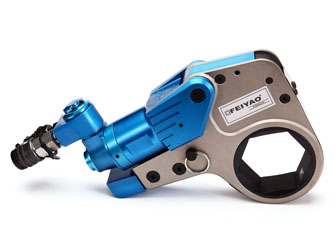

Low Profile Hydraulic Hexagon Wrench
Product Features
-
High strength aluminum titanium alloy material body, light weight, large torque-to-weight ratio;
-
Rough tooth structure, sturdy and durable
-
Output accuracy ±3%.
-
Compact corner radius,is more suitable for the confined areas.
-
Special surface anti-corrosion treatment, suitable for use in harsh environments
|
Model |
Metric size
（mm） |
Imperial size
（mm） |
Min.Torque
（Nm） |
Max.Torque
（Nm） |
Working pressure（MPa） |
Power head weight
（Kg） |
Working head weight
（Kg） |
|
FY-2XLCT |
16-36 |
24-55 |
232 |
2328 |
70 |
0.9 |
1.5 |
|
FY-4XLCT |
24-42 |
36-65 |
585 |
5858 |
70 |
1.7 |
3.4 |
|
FY-8XLCT |
30-64 |
46-90 |
1094 |
10941 |
70 |
3 |
6.3 |
|
FY-14XLCT |
33-76 |
50-115 |
1852 |
18521 |
70 |
4.6 |
11.4 |
|
FY-30XLCT |
76-115 |
110-155 |
4188 |
41882 |
70 |
10.4 |
20.5 |
 |
|

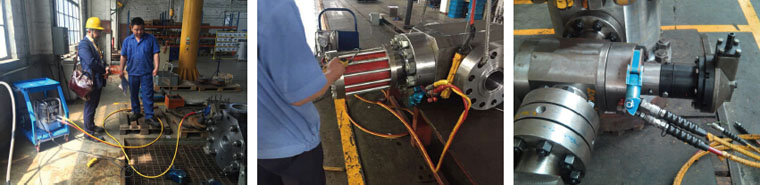

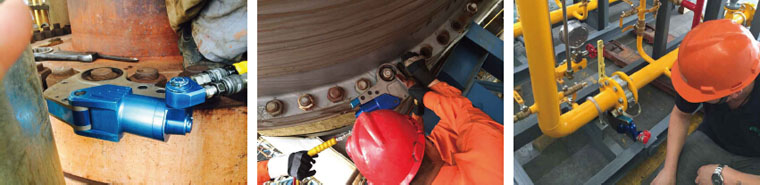

Bolt tighteningof large equipmentin confined space |
Bolt tightening of pressure vessel in paper mill |
Bolt tightening of pipeline flange in refinery |
 |
|
Bolttightening for valve maintenance |
Bolttightening for nuclear power valve repairing |
Bolt disassembly for valve maintenance |
