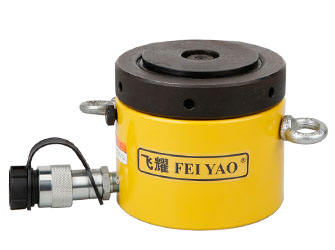

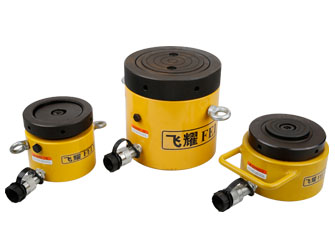

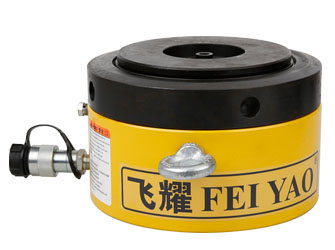

Single Acting Low Height Lock Nut Hydraulic Cylinder

  • ※ Max. Working Pressure : 70Mpa

    ※ Cylinder capacity : 60-520T

    ※ Closed height : 125-192mm

    ※ Stroke : 45-50mm

Product Features


  • Single acting ,load return.
  • Lock nut for positive and safe mechanical load holding over a long period of time.
  • Safety lock nut for mechanical load holding. Can be locked at any position by mechanical nut within the stroke, ensure safe operation.
  • Extremely low height for use in confined areas.
  • Special bearing design withstands side-loads up to 3%
  • Overflow port functions as a stroke limiter.
  • A ball type saddle can be configured to adapt to imbalance load conditions.
  • Dust ring reduces contamination, extending cylinder life.

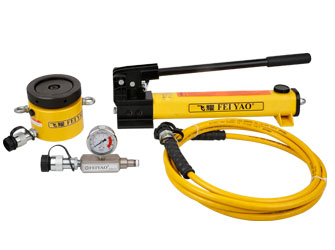

  • Optional manual valve to ensure the safety of the process of rising and falling.

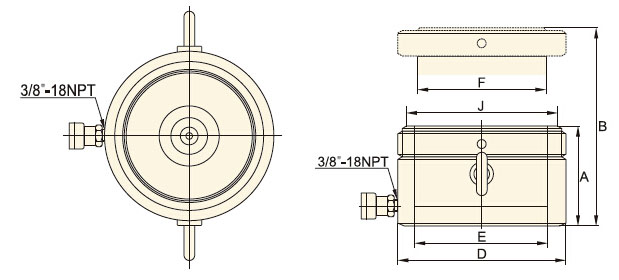

  • 3/8 "- 18NPT coupler and dust cap included on all models.
Industry Applications

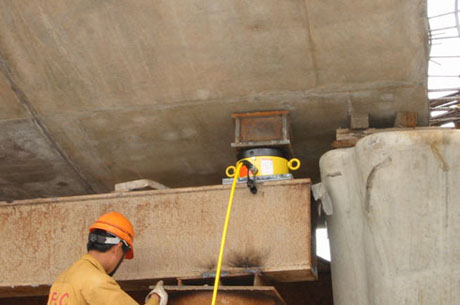

  • Bridge maintenance and replacement of rubber bearings.
  • Installation and fine-tuning of diesel engine in shipyard.
  • Installation and fine-tuning of marine diesel engine in shipyard.

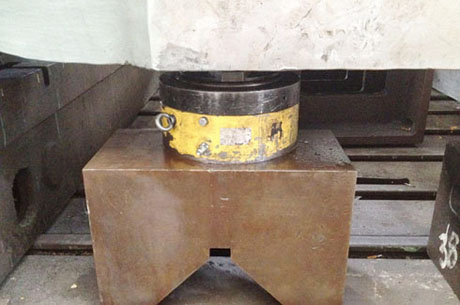

  • Long term supporting for maintenance of large press.

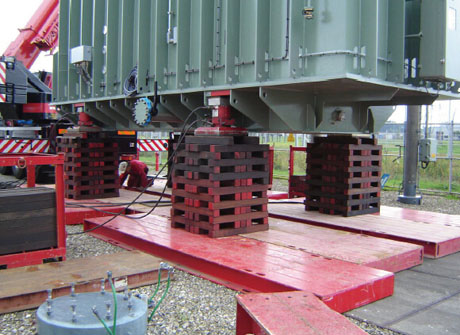

  • Maintenance and lifting operation of generator in power plant.
