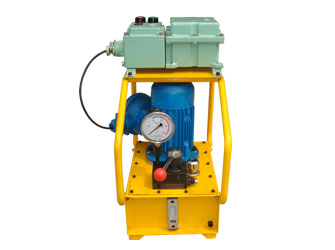

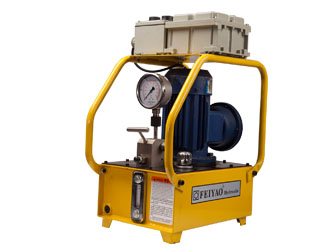

Anti-explosion Electric Hydraulic Pump
-
※ Working Pressure: 70Mpa
※ Oil Tank Capacity: 16L
※ Valve Type: manual valve
※ Motor power: 0.75KW
※ Flow: 1L/Min
Product Features
-
380V, three phase, 50Hz explosion proof type of motor, explosion proof electric cabinet
-
Drag line controller( explosion proof)
-
Low running noise
-
The hydraulic oil temperature is low under the condition of continuous work.
-
The gauge was filled by silicone oil.
-
With the function of over current and over voltage circuit protection
-
Over load circuit protection.
|
Model |
Working Pressure
(Mpa) |
Pump Type |
Valve Type |
Oil Tank Capacity
(L) |
Motor Power
(KW) |
Flow
(L/min) |
Voltage
(V) |
Current Frequency
(Hz) |
Outlet
Size |
Dimensions
(mm) |
|
FY-FBB-380 |
70 |
double acting |
manual valve |
16 |
0.75 |
1 |
380 |
50 |
NPT3/8" |
500×400×760 |
