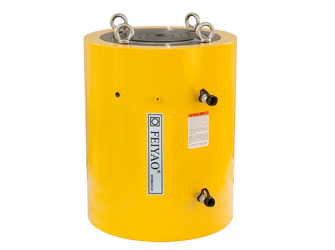

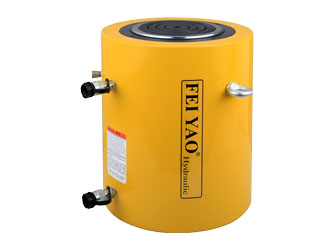

Double Acting High Tonnage Hydraulic Cylinder

※ Max. Working Pressure : 70Mpa

※ Cylinder capacity : 50-1000T

※ Closed height : 166-815mm

※ Stroke : 50-300mm

Product Descriptions

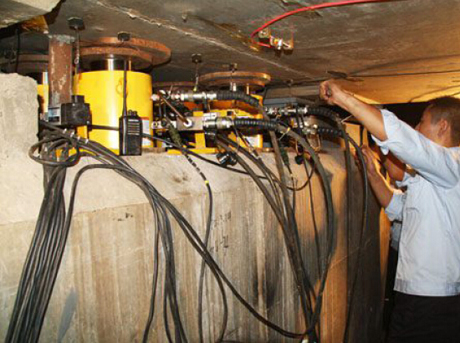

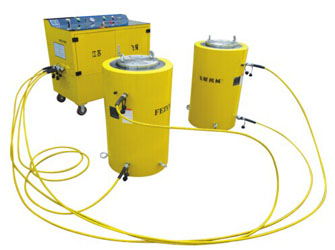

Double acting high tonnage hydraulic cylinders has the characteristics of large output, light weight and long distance operation in any space position. Matched use with electric hydraulic pump, can achieve lifting, pushing, pulling, squeezing, pressing and other operations.Widely used in transportation, railways, bridges, shipbuilding, construction, installation and maintenance of refinery equipment.

Most functions, most lifting endurance, especially designed for heavy load lifting, heavy weights and industrial production. Product Features

Double acting, hydraulic return, improve the lifting speed
Built-in safety valve prevents damage in case of over-pressurization.
Baked enamel finish and plated pistons provide superior corrosion resistance.
Plunger wiper reduces contamination, extending cylinder life.
3/8 "- 18NPT coupler and dust cap included on all models.

Model	Capacity	Max. Working Pressure	Stroke	Effective Area	Oil Capacity (cm3)		Closed Height	Outside Diameter	Plunger Diameter	Weight
Model	(T)	(MPa)	(mm)	(cm2)	push	pull	(mm)	(mm)	(mm)	(kg)
FY-CLRG-502	50	70	50	76.1	380	189	166	130	70	15
FY-CLRG-504			100	76.1	761	378	216	130	70	19
FY-CLRG-506			150	76.1	1141	566	266	130	70	23
FY-CLRG-508			200	76.1	1522	755	316	130	70	27
FY-CLRG-5010			250	76.1	1902	944	366	130	70	31
FY-CLRG-5012			300	76.1	2283	1133	416	130	70	35
FY-CLRG-1002	100		50	133	665	309	183	165	95	28
FY-CLRG-1004			100	133	1331	618	233	165	95	34
FY-CLRG-1006			150	133	1996	928	283	165	95	40
FY-CLRG-1008			200	133	2662	1237	333	165	95	46
FY-CLRG-10010			250	133	3327	1546	383	165	95	53
FY-CLRG-10012			300	133	3993	1855	433	165	95	59
FY-CLRG-1502	150		50	198	990	477	200	205	114	47
FY-CLRG-1504			100	198	1979	953	250	205	114	57
FY-CLRG-1506			150	198	2969	1430	300	205	114	67
FY-CLRG-1508			200	198	3959	1906	350	205	114	76
FY-CLRG-15010			250	198	4948	2383	400	205	114	86
FY-CLRG-15012			300	198	5938	2860	450	205	114	95
FY-CLRG-2002	200		50	266	1332	633	218	235	133	69
FY-CLRG-2006			150	266	3995	1900	318	235	133	94
FY-CLRG-20012			300	266	7990	3800	468	235	133	131
FY-CLRG-2502	250		50	366	1830	760	275	275	165	120
FY-CLRG-2506			150	366	5491	2280	375	275	165	156
FY-CLRG-25012			300	366	10983	4560	525	275	165	210
FY-CLRG-3002	300		50	457	2287	1132	322	310	171	179
FY-CLRG-3006			150	457	6860	3397	422	310	171	223
FY-CLRG-30012			300	457	13719	6793	572	310	171	287
FY-CLRG-4002	400		50	613	3066	1640	374	365	190	290
FY-CLRG-4006			150	613	9197	4921	474	365	190	349
FY-CLRG-40012			300	613	18393	9843	624	365	190	437
FY-CLRG-5002	500		50	730	3648	1362	422	400	241	400
FY-CLRG-5006			150	730	10945	4085	522	400	241	479
FY-CLRG-50012			300	730	21890	8171	672	400	241	598
FY-CLRG-6002	600		50	856	4282	1488	433	430	266	475
FY-CLRG-6006			150	856	12845	4465	533	430	266	568
FY-CLRG-60012			300	856	25690	8931	683	430	266	707
FY-CLRG-8002	800		50	1217	6087	2128	538	510	317	836
FY-CLRG-8006			150	1217	18260	6385	638	510	317	966
FY-CLRG-80012			300	1217	36521	12769	788	510	317	1160
FY-CLRG-10002	1000		50	1464	7322	2705	565	560	343	1055
FY-CLRG-10006			150	1464	21966	8114	665	560	343	1210
FY-CLRG-100012			300	1464	43932	16227	815	560	343	1442
