On-track Heavy Load Hydraulic Pusher
Product Descriptions

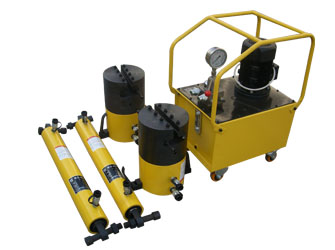

Composed of clamping cylinder and pushing-moving cylinder, electric hydraulic pump, hydraulic hose, widely used in pushing large-scale equipment for installation.
Equipped with heavy rail (38kg/m, 43kg/m, 50kg/m). In order to smoothly move the heavy objects, you must use two sets hydraulic pushers at the same time.
Conveniently, safely, quickly and accurately move the large power plant transformers, large power plants boilers, large marine diesel engines and other large equipment to the designated installation location.
|
Model |
Standard Configuration |
Prepared by User |
How to use |
|
FY-SCM-200T |
1×clamping cylinder, 1×pushing-moving cylinder,1× electric hydraulic pump, 4×6m hydraulic hoses, 1×distributing valve |
2×active sliding boots, 2×passive sliding boots, 200T equipment |
Connect 1×clamping cylinder and 1×pushing-moving cylinder by hydraulic hose in series, drived by 1×electric hydraulic pump |
|
FY-SCM-400T |
2×clamping cylinders, 2×pushing-moving cylinders,2× electric hydraulic pumps, 8×6m hydraulic hoses, 2×distributing valves |
4×active sliding boots, 4×passive sliding boots, 400T equipment |
Connect 2×clamping cylinders, 2×pushing-moving cylinders, 2×electric hydraulic pumps and 2×distributing valves by hydraulic hose in series, drived by 2×electric hydraulic pumps |
 |
|
Pushing-moving and installation of generating equipment in thermal power plant |
Pushing-moving in position of transformer in thermal power plant |
Pushing-moving in position of generating equipment in thermal power plant |
