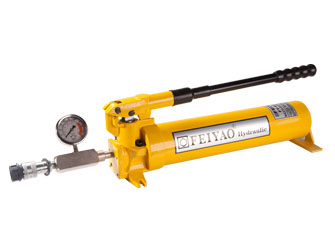

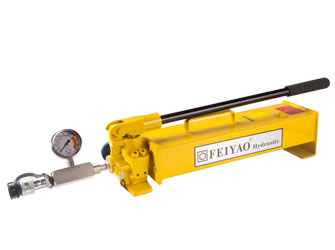

Steel hydraulic hand pump
-
※ Max. Working pressure: 70Mpa
※ Oil displacement per stroke: 2.46/4.7ml
※ Outlet size: NPT3/8”
※ Oil capacity: 2200/7400ml
Product Features
-

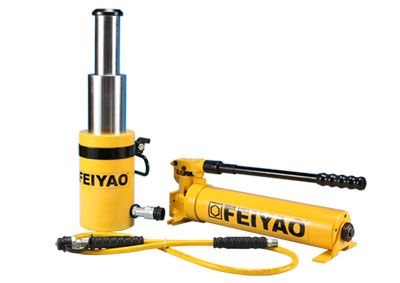

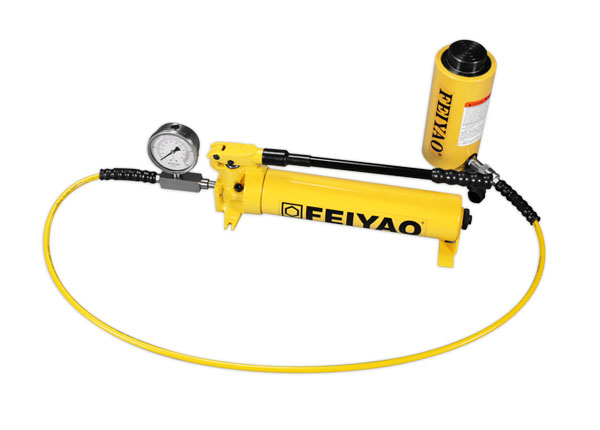

Usually equipped with the high tonnage cylinders.
-
Compact, all steel design.
-
Heavy duty and durable all-metal structure.
-
Large flow output at per stroke.
-
Double speed, effortless-handle toreduce labor intensity.
-
Integrated control valves with high performance
-
Large oil capacity to power a wide range of cylinders and tools.
-
Chrome plated plunger and wiper system for durable, long lasting performance.
P-80
P-80
|
Model |
Working Pressure
(Mpa) |
Oil Displacement Per Stroke
(ml) |
Outlet Size |
Oil Tank Capacity
(ml) |
Cylinder Type |
|
1st stage |
2nd stage |
1st stage |
2nd stage |
|
FY-P-80 |
2.5 |
70 |
16.22 |
2.46 |
NPT3/8" |
2200 |
Single Acting |
|
FY-P-84 |
2.5 |
70 |
16.22 |
2.46 |
NPT3/8" |
2200 |
Double Acting |
|
FY-P-462 |
1.4 |
70 |
126 |
4.7 |
NPT3/8" |
7400 |
Single Acting |
|
FY-P-464 |
1.4 |
70 |
126 |
4.7 |
NPT3/8" |
7400 |
Double Acting |
