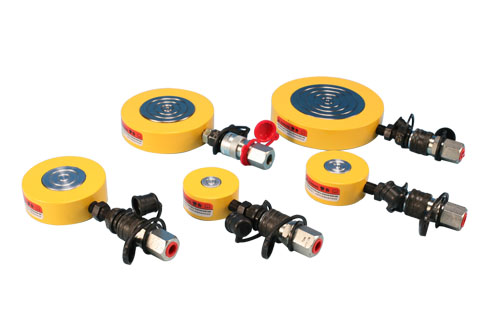

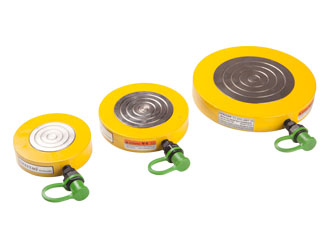

Ultra High Pressure Ultra Low Height Hydraulic Cylinder

※ Max. Working Pressure : 150 Mpa

※ Cylinder capacity : 5-200 T

※ Closed height : 30-35 mm

※ Stroke : 10 mm

Product Details
Parameters

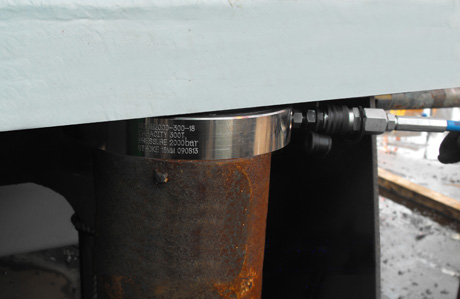

Case

Product Descriptions

Ultra high pressure ultra low height hydraulic cylinder mainly used in space is very limited occasions, for example: replacing abutment for expressway bridge, shipbuilding plant marine engine adjustment, lifting of steam turbine maintenance in power plant and so on. Product Features

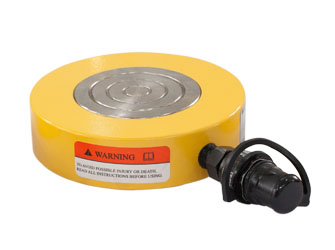

The top end is provided with an elastic sealing piece to avoid the impurity into the cylinder, extending cylinder life
Top finite overflow port, When the plunger over stroke, automatic overflow, safe and convenient
Compared with the same kind cylinder, the same closed height, there is a longer lift stroke
G1/4” coupler and dust cap included on all models.

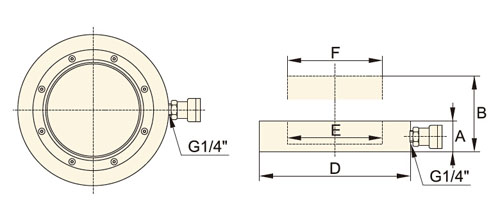

	Capacity	Max. Working Pressure	Closed Height A	Stroke	Effective Area	Oil Capacity	Outside Diameter D	Plunger Diameter F	CouplerHeight	CouplerHeight尺寸	Weight
	(T)	(MPa)	(mm)	(mm)	(cm2)	(cm3)	(mm)	(mm)	(mm)		(kg)
FY-STC-0510	5	150	30	10	3.46	3.5	60	21	14	G1/4"	0.17
FY-STC-01010	10	150	30	10	7.06	7.1	70	30	14	G1/4"	1.1
FY-STC-02510	25	150	30	10	17.34	17.3	90	47	14	G1/4"	1.5
FY-STC-05010	50	150	30	10	38.46	38.5	118	70	14	G1/4"	2.6
FY-STC-10010	100	150	33	10	69.36	69.4	152	94	14	G1/4"	4.3
FY-STC-15010	150	150	34	10	105.62	105.6	180	116	14	G1/4"	6.8
FY-STC-20010	200	150	35	10	136.77	136.8	204	132	14	G1/4"	9
