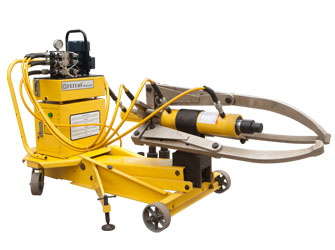

Automatic Vehicle-mounted Hydraulic Gear Puller

  • ※ Working pressure: 70Mpa

    ※ Cylinder capacity: 50-200T

    ※ Cylinder stroke: 250-330mm

    ※ Spread range: 100-1334mm

    ※ Reach: 120-1219mm

Product Features
  • Automatic vehicle-mounted hydraulic gear puller adopts double acting hydraulic cylinder parts, with high efficiency in dismantling the work-piece.
  • Solenoid directional valve makes the operation more convenient.
  • Mainly used to dismantle the large shaft type or hole type work work-piece.
  • Move conveniently with the wheels, which also can be locked .

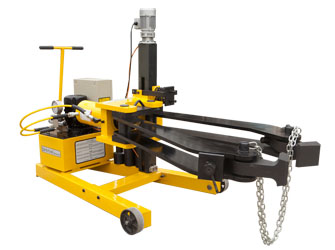

  • High strength alloy steel jaws are anti-skid, 50T type with 3 jaws, 100T and 200T type with 2 jaws, equipped with chains to improve safety.
  • Easy for locating through the screw rod to adjust the height, improving working efficiency.
  • Solenoid directional valve was used to control opening and closing of the jaws. Just need operating one button box to finish the pulling works.(the lifting of the cylinder, the height adjustment of the puller, the opening and closing of the jaws.)
How to choose the appropriate hydraulic puller
  • Measure the out diameter of the work-piece, the thickness of the work-piece, the distance of the work-piece in the shaft.
  • In case the working space is enough, it’s much better to choose the 3 jaws pullers to get more reliable clamping force and more uniform pulling force.
  • Choose the puller with the appropriate specification ( if the capacity of the puller already reached the max and the work-piece wasn’t dismantled, please choose the puller with higher capacity).
  • Generally, the calculation of the pulling force as follows, when the inner diameter of the work-piece was 1inch (25,4mm), the capacity of the puller should be 7-10Ton. For example, if inner diameter of the work-piece was 2inch(50.8mm), the capacity should be 14-20T.
  • If you can not make sure the Model No., please contact with KIET engineers.
50T 100T 200T

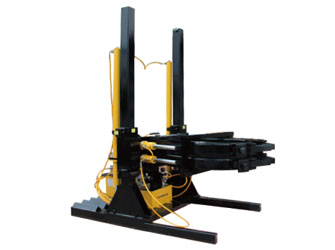

100T, 200T Reinforced hook
