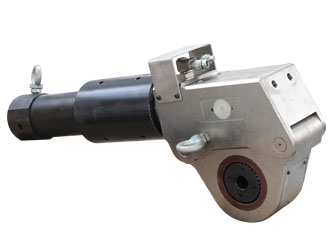

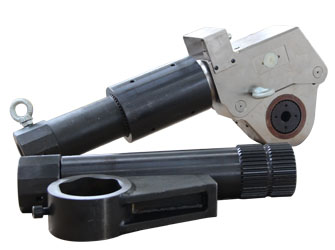

Large Torque Square Drive Hydraulic Torque Wrench
-
※ Min. Torque range: 300-15101Nm
※ Max. Torque range: 3002-161013Nm
※ Bolt diameter: M27-M120
※ Driving square: 19*19-105*105mm
Product Features
-
High torque hydraulic wrench with high technology aerospace materials, aluminum and titanium alloy and special alloy steel.
-
360° quick coupling, no space limited.
-
Direct push type square drive reversing, simple and quickly.
-
Precision ratchet, the accuracy is as high as ±3%
-
Can be equipped with large size and long sockets to adapt to different requirements of work conditions.
-
Ultra large torque design, up to 180677Nm, greater torque can be customized.
-
Standard working pressure: 70MPa
2-port
|
Model |
Min. Torque
（N·M） |
Max. torque
（N·M） |
Bolt diameter
（㎜） |
Torque accurancy
（±） |
Driving square
（㎜） |
Weight
（㎏） |
|
FY-WJB-30 |
300 |
3002 |
M27-M39 |
5％ |
19×19 |
5 |
|
FY-WJB-50 |
503 |
5032 |
M36-M45 |
5％ |
25×25 |
7 |
|
FY-WJB-100 |
1014 |
10135 |
M42-M52 |
5％ |
38×38 |
14 |
|
FY-WJB-200 |
2013 |
20130 |
M45-M56 |
5％ |
50×50 |
20 |
|
FY-WJB-400 |
3960 |
40200 |
M56-M64 |
5％ |
64×64 |
36 |
|
FY-WJB-600 |
6386 |
63857 |
M64-M80 |
5％ |
64×64 |
40 |
|
FY-WJB-800 |
7939 |
79390 |
M72-M100 |
5％ |
76×76 |
55 |
|
FY-WJB-1200 |
12405 |
124046 |
M80-M110 |
5％ |
90×90 |
90 |
|
FY-WJB-1600 |
15101 |
161013 |
M90-M120 |
5％ |
105×105 |
120 |

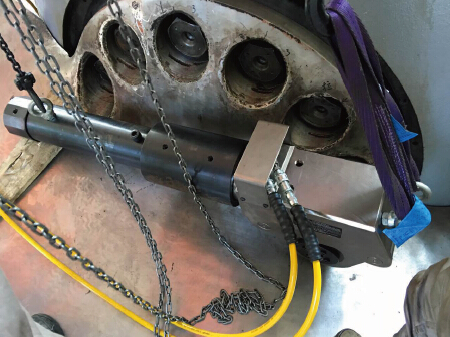

Blot tightening of pipeline flange in West-East natural gas transmission project

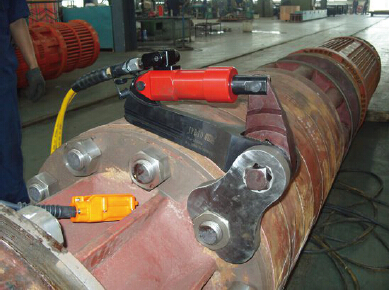

Bolt tightening of oil field equipment.
