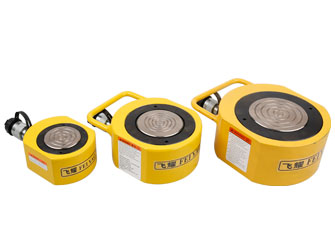

Single Acting Ultra Low Height Hydraulic Cylinder

  • ※ Max. Working Pressure : 70 Mpa

    ※ Cylinder capacity : 5-200 T

    ※ Closed height : 32-108 mm

    ※ Stroke : 6-16 mm

Product Descriptions

Ultra low height hydraulic cylinder is widely used in synchronous lifting to replace the rubber bearing for bridge maintenance, synchronous lifting for large equipment maintenance, welding positioning of structural parts, assembly of equipment, piping flange tray separation and other application occasions, spring return design applys to place with a high degree of closure and maximum stroke is the primary factor. Product Features

  • Compact, flat design for where other cylinders will not fit

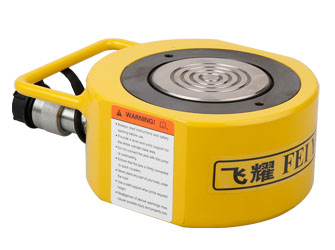

  • FY-RSM-750, 1000 and 1500 have handles for easy carrying
  • Mounting holes permit easy fixturing
  • High strength alloy steel for durability
  • Single acting, spring return
  • Hard chrome plated high-quality steel plungers
  • Plunger wiper reduces contamination, extending cylinder life
  • Baked enamel finish for increased corrosion resistance

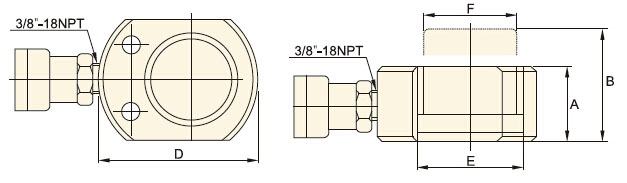

  • 3/8 "- 18NPT coupler and dust cap included on all models.
Industry Applications

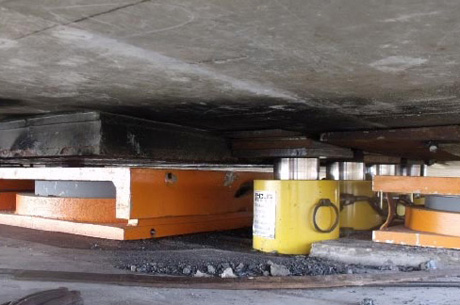

  • Synchronous lifting to replace the rubber bearing for bridge maintenance
  • Synchronous lifting to replace the rubber bearing for high speed rail maintenance
  • Fine tuning for synchronous lifting for urban viaduct construction
  • Fine tuning for marine diesel engine installation
  • Synchronous lifting of steam turbine, equipment maintenance in thermal power plant
  • Simultaneous separation of speed reducer and roller press maintenance in cement plant
  • Welding adjustment of locomotive manufacturing car body structure
  • Lifting operation of large equipment installation and maintenance
