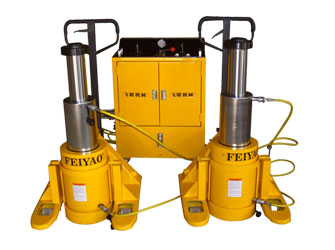

Double Acting Multistage Hydraulic Cylinder
-
※ Max. Working Pressure : 70 MPa
※ Cylinder Capacity : 265-525 T
※ Closed Height : 430~530 mm
※ Stroke : 560~650 mm
Product Features
-
Double acting, hydraulic return
-
Pull type design, suitable for stretching and folding operation.
-
Both ends with earrings, easy to connect with the object.
-
Built in safety valve to prevent over pressure.
-
Dust ring reduces contamination, extending cylinder life.
-
Optional lifting valve group, to ensure the safety and steady of lifting.
-
3/8 "- 18NPT coupler and dust cap included on all models.
|
Model |
Capacity |
Max. Working Pressure |
Closed Height |
Stroke |
Effective Area |
Oil Capacity |
Outside Diameter |
Weight |
|
(T) |
(MPa) |
(mm) |
(mm) |
(cm2) |
(cm3) |
(mm) |
(kg) |
|
FY-RRD-265 |
First stage 265 |
70 |
530 |
First stage 270 |
First stage 379.9 |
First stage 10258.4 |
300 |
270 |
|
Second stage 100 |
70 |
Second stage290 |
Second stage 143.1 |
Second stage 4148.9 |
|
FY-RRD-525 |
First stage 525T |
70 |
430 |
First stage 220 |
First stage 267.7 |
First stage 5889 |
415 |
410 |
|
Second stage 265 |
70 |
Second stage 210 |
Second stage 379.9 |
Second stage 7978.7 |
|
Three stage 115 |
70 |
Three stage 220 |
Three stage 165 |
Three stage 3631 |
