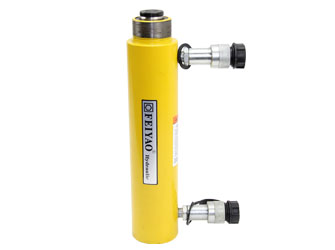

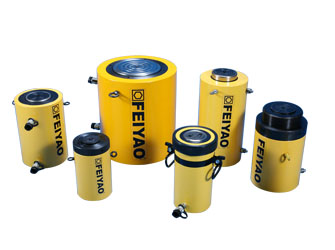

Double Acting Hydraulic Cylinder

※ Max. Working Pressure : 70Mpa

※ Cylinder capacity : 10-520T

※ Closed height : 196-1644mm

※ Stroke : 57-1219mm

Product Descriptions

Double acting hydraulic cylinder is suitable for lifting operation of high tonnage equipment and lifting maintenance operations required precise control of load， also suitable for horizontal pushing operations. Product Features

Collar threads, plunger threads and base mounting holes for easy fixturing
Baked enamel finish for increased corrosion resistance.
Removable hardened saddles protect plunger during lifting and pressing.
Built-in safety valve prevents accidental over-pressurization.
3/8 "- 18NPT coupler and dust cap included on all models.

Industry Applications

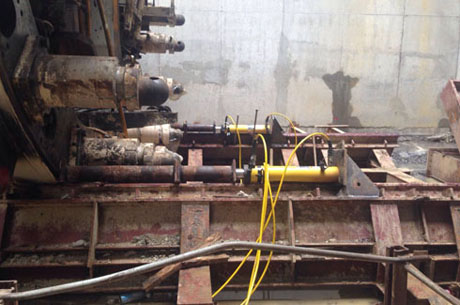

Welding and lifting of ship hull.
Equipment maintenance and lifting in steel plant.
Equipment maintenance and lifting in thermal power plant.

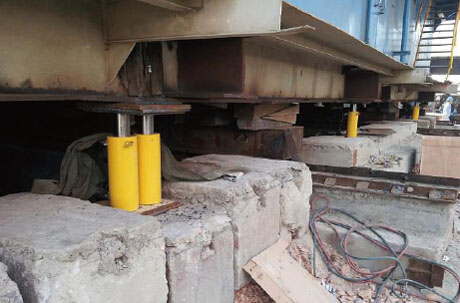

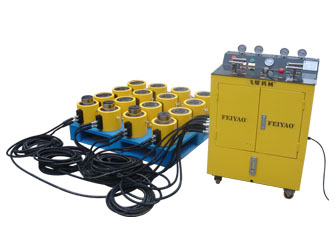

Maintenance and synchronous lifting of ancient buildings.

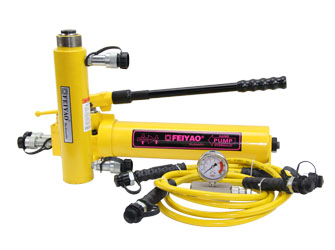

Equipped with a variety of hydraulic tools to bending, cutting, punching, pressing and so on.

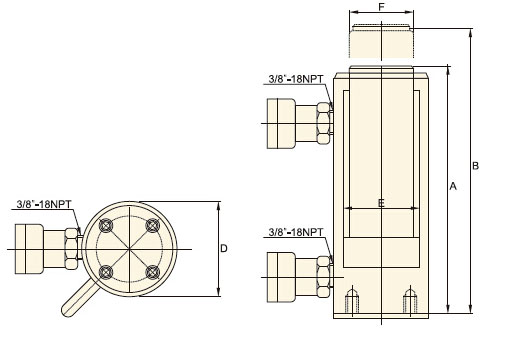

Model	Capacity	Max. Working Pressure	Stroke	Max. Capacity		Effective Area			Oil Capacity			Extended Height B	Outside Diameter D	Weight
	Capacity	Max. Working Pressure	Stroke	push	pull	push	pull		push		pull	Extended Height B	Outside Diameter D	Weight
	T	MPa	mm	kN		cm2			cm3			mm	mm	kg
FY-RR-1010	10	70	254	101	33	14,5		4,8	368	122		663	73	12
FY-RR-1012	10		305	101	33	14,5		4,8	442	147		762	73	14
FY-RR-308	30		209	295	53	42,1		19,1	879	400		604	101	18
FY-RR-3014	30		368	295	53	42,1		19,1	1549	703		917	101	29
FY-RR-506	50		156	498	103	71,2		21,5	1111	335		487	127	30
FY-RR-5013			334	498	103	71,2		21,5	2378	718		843	127	52
FY-RR-5020			511	498	103	71,2		21,5	3638	1099		1244	127	68
FY-RR-756	75		156	718	156	102,6		31,4	1601	490		503	146	41
FY-RR-7513	75		333	718	156	102,6		31,4	3417	1046		858	146	68
FY-RR-1006	95		168	933	435	133,3		62,2	2238	1045		525	177	61
FY-RR-10013			333	933	435	133,3		62,2	4439	2071		857	177	93
FY-RR-10018			460	933	435	133,3		62,2	6132	2861		1147	177	117
FY-RR-1502	140		57	1386	668	198,1		95,4	1129	544		253	203	49
FY-RR-1506			156	1386	668	198,1		95,4	3090	1488		541	203	93
FY-RR-15013			333	1386	668	198,1		95,4	6597	3177		915	203	124
FY-RR-15032			815	1386	668	198,1		95,4	16145	7775		1931	203	238
FY-RR-2006	200		152	1995	1017	285,0		145,3	4332	2209		582	247	147
FY-RR-20013			330	1995	1017	285,0		145,3	9405	4795		938	247	199
FY-RR-20018			457	1995	1017	285,0		145,3	13025	6640		1222	247	204
FY-RR-20024			610	1995	1017	285,0		145,3	17385	8863		1527	247	279
FY-RR-20036			914	1995	1017	285,0		145,3	26049	13280		2136	247	383
FY-RR-20048			1219	1995	1017	285,0		145,3	34741	17712		2746	247	483
FY-RR-3006	325		153	3201	1703	457,3		243,2	6997	3721		638	311	200
FY-RR-30012			305	3201	1703	457,3		243,2	13947	7418		943	311	312
FY-RR-30018			457	3201	1703	457,3		243,2	20889	11114		1247	311	385
FY-RR-30024			609	3201	1703	457,3		243,2	27850	14811		1552	311	469
FY-RR-30036			915	3201	1703	457,3		243,2	41843	22253		2162	311	628
FY-RR-30048			1219	3201	1703	457,3		243,2	55745	29646		2771	311	780
FY-RR-4006	440		152	4292	2297	613,1		328,1	9319	4987		690	358	303
FY-RR-40012			305	4292	2297	613,1		328,1	18700	10007		995	358	399
FY-RR-40018			457	4292	2297	613,1		328,1	28018	14995		1300	358	453
FY-RR-40024			610	4292	2292	613,1		328,1	37400	20014		1605	358	597
FY-RR-40036			914	4292	2292	613,1		328,1	56037	29988		2214	358	792
FY-RR-40048			1219	4292	2292	613,1		328,1	74737	39996		2824	358	980
FY-RR-5006	520		153	5108	2838	729,7		405,4	11164	6203		730	397	432
FY-RR-50012			305	5108	2838	729,7		405,4	22256	12365		1035	397	589
FY-RR-50018			457	5108	2838	729,7		405,4	33347	18526		1339	397	680
KE-RR-50024			609	5108	2838	729,7		405,4	44440	24689		1644	397	816
FY-RR-50036			925	5108	2838	729,7		405,4	66768	36973		2254	397	1002
FY-RR-50048			1219	5108	2838	729,7		405,4	88951	49418		2863	397	1224
