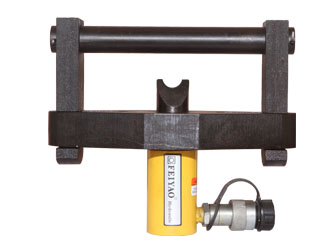

Split Type Hydraulic Flange Splitters

  • ※ Capacity: 5-10T

    ※ Bolt Size:19-41mm

    ※ Flange thickness: 57-92mm

    ※ Stroke: 38-54mm

    ※ Standard wedge: 3-28mm

Product Descriptions

The Split Type Hydraulic Flange Splitters apply to petrochemical, metallurgical, electric power and other industries to maintain pipe and other large mechanical connection of the demolition and maintenance.

It’s reversible leg design, provides a wider flange range of applications, and the guide rod through the flange hole design, improves the safety of operation. Suitable for small flange tip clearance situation. Lightweight, ergonomic design for ease to use, adjustment jaw width from 70mm to 216mm for a wide range of applications. Single acting, spring return of hydraulic cylinder, can use for flanges which thickness and maximum spread does not exceed 152.4mm and bolt size is not less than 20.7mm.
