Split Type Manual Hydraulic Pipe Bender

  • ※ Working pressure: 70Mpa

    ※ Bending range (O.D.): 22-60mm

    ※ Bending radius: 4*pipe diameter

    ※ Pipe thickness: ≤4mm

Product Descriptions

Separately designed between the bender and pump, easy to carry on site. It is widely used in smooth wrinkle-free bending for water pipes, wire pipes, gas pipes, pipe, especially for thick-walled pipes.

Size 1/2’’- 2’’ pipes can be bent to 90ºat a time, size 2’’- 6’’ must move the pipe to bend. Product Features

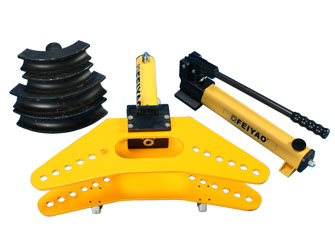

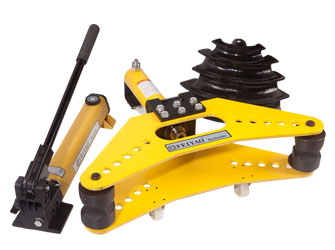

  • A whole set includes Hydraulic Pipe Bender, Manual Hydraulic Pump, Hydraulic Hose, Molds, Fixed Plug-pin.
  • Piston plated hard Cr to prevent scratches and corrison, surface painted to improve the resistance and corrison;
  • Pipe outer diameter: 1/2’’- 2’’;
  • Max. bending angle: 90º;
  • Lightweight heat-treated steel molds and steel frame make bending pipe smooth wrinkle-free.
