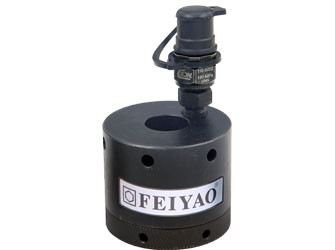

Under Locking Type Hydraulic Nut
Product Features
-
Suitable for high temperature of 100℃
-
Provide special seal when temperatureis higher than 100℃
-
Anti corrosion protective cap
-
Spherical washers can be used if the interface is not at right angles
-
Non-standard customization
|
Model |
Bolt Diameter |
Working Pressure |
Max. Load |
Outside Diameter |
Height |
Stroke |
|
(inch) |
(mm) |
(Mpa) |
(KN) |
(mm) |
(mm) |
(mm) |
|
FY-XLM-M33 |
1 1/4 |
M33 |
150 |
216 |
74 |
51 |
6 |
|
FY-XLM-M36 |
1 3/8 |
M36 |
150 |
246 |
80 |
59 |
4 |
|
FY-XLM-M39 |
1 1/2 |
M39 |
150 |
296 |
87 |
63 |
4 |
|
FY-XLM-M42 |
1 5/8 |
M42 |
150 |
340 |
94 |
69 |
6 |
|
FY-XLM-M45 |
1 3/4 |
M45 |
150 |
406 |
101 |
76 |
6 |
|
FY-XLM-M48 |
1 7/8 |
M48 |
150 |
457 |
107 |
77 |
8 |
|
FY-XLM-M52 |
2 |
M52 |
150 |
553 |
117 |
84 |
8 |
|
FY-XLM-M56 |
2 1/4 |
M56 |
150 |
656 |
128 |
88 |
8 |
|
FY-XLM-M64 |
2 1/2 |
M64 |
150 |
817 |
144 |
99 |
10 |
|
FY-XLM-M68 |
2 3/4 |
M68 |
150 |
1008 |
157 |
105 |
10 |
|
FY-XLM-M72 |
3 |
M72 |
150 |
1051 |
163 |
109 |
12 |
|
FY-XLM-M80 |
3 1/4 |
M80 |
150 |
1459 |
187 |
124 |
12 |
|
FY-XLM-M90 |
3 1/2 |
M90 |
150 |
1727 |
207 |
140 |
12 |
|
FY-XLM-M95 |
3 3/4 |
M95 |
150 |
1965 |
219 |
148 |
12 |
|
FY-XLM-M100 |
4 |
M100 |
150 |
2233 |
234 |
154 |
15 |
|
FY-XLM-M110 |
4 1/2 |
M110 |
150 |
2688 |
255 |
166 |
15 |
|
FY-XLM-M125 |
5 |
M125 |
150 |
3636 |
296 |
192 |
15 |
|
FY-XLM-M140 |
5 1/2 |
M140 |
150 |
4371 |
328 |
214 |
15 |
|
FY-XLM-M150 |
6 |
M150 |
150 |
5268 |
356 |
231 |
18 |

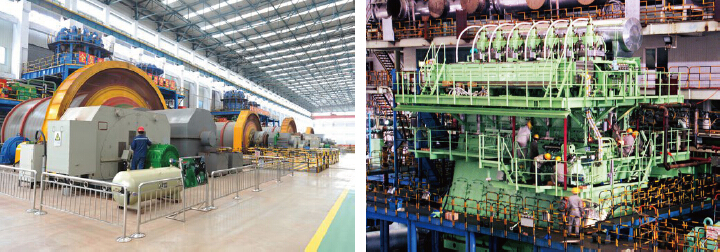

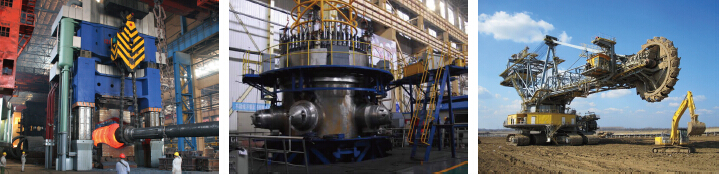

Assorted Applications
 |
|
Million tons press machine |
Nuclear power equipment |
Opencast machine |
 |
|
Mineral processing equipment |
Marine diesel |
