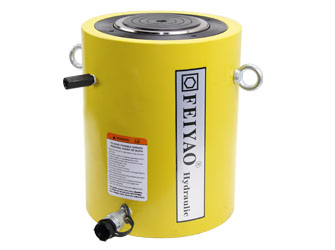

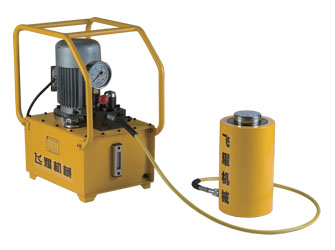

Single Acting High Tonnage Hydraulic Cylinder

※ Max. Working Pressure : 70Mpa

※ Cylinder capacity : 50-1000T

※ Closed height : 166-815mm

※ Stroke : 50-300mm

Product Features

Single acting, load return
Integral stop ring provides piston blow-out protection
Special bearing design withstands side-loads up to 10% of the rated load
Plunger wiper reduces contamination, extending cylinder life
Standard rigid deep groove saddle, can choose a 5 degree tilt saddle to adapt to component unevenly situation
Single acting design applys to working conditions of need connected common force
Single acting design does not apply to horizontal working conditions
3/8 "- 18NPT coupler and dust cap included on all models.

Model	Capacity	Max. Working Pressure	Closed Height A	Stroke	Effective Area	Oil Capacity	Outside Diameter D	Plunger Diameter F	Saddle Diameter J	Weight
Model	(T)	(MPa)	(mm)	(mm)	(cm2)	(cm3)	(mm)	(mm)	(mm)	(kg)
FY-CLSG-502	50	70	166	50	76.1	380	130	70	50	15
FY-CLSG-504			216	100	76.1	761	130	70	50	19
FY-CLSG-506			266	150	76.1	1141	130	70	50	23
FY-CLSG-508			316	200	76.1	1522	130	70	50	27
FY-CLSG-5010			366	250	76.1	1902	130	70	50	31
FY-CLSG-5012			416	300	76.1	2283	130	70	50	35
FY-CLSG-1002	100	70	183	50	133	665	165	95	75	28
FY-CLSG-1004			233	100	133	1331	165	95	75	34
FY-CLSG-1006			283	150	133	1996	165	95	75	40
FY-CLSG-1008			333	200	133	2662	165	95	75	46
FY-CLSG-10010			383	250	133	3327	165	95	75	53
FY-CLSG-10012			433	300	133	3993	165	95	75	59
FY-CLSG-1502	150	70	200	50	198	990	205	114	94	47
FY-CLSG-1504			250	100	198	1979	205	114	94	57
FY-CLSG-1506			300	150	198	2969	205	114	94	67
FY-CLSG-1508			350	200	198	3959	205	114	94	76
FY-CLSG-15010			400	250	198	4948	205	114	94	86
FY-CLSG-15012			450	300	198	5938	205	114	94	95
FY-CLSG-2002	200	70	218	50	266	1332	235	133	113	69
FY-CLSG-2006			318	150	266	3995	235	133	113	94
FY-CLSG-20012			468	300	266	7990	235	133	113	131
FY-CLSG-2502	250	70	275	50	366	1830	275	165	145	120
FY-CLSG-2506			375	150	366	5491	275	165	145	156
FY-CLSG-25012			525	300	366	10983	275	165	145	210
FY-CLSG-3002	300	70	322	50	457	2287	310	171	150	179
FY-CLSG-3006			422	150	457	6860	310	171	150	223
FY-CLSG-30012			572	300	457	13719	310	171	150	287
FY-CLSG-4002	400	70	374	50	613	3066	365	190	170	290
FY-CLSG-4006			474	150	613	9197	365	190	170	349
FY-CLSG-40012			624	300	613	18393	365	190	170	437
FY-CLSG-5002	500	70	422	50	730	3648	400	241	218	400
FY-CLSG-5006			522	150	730	10945	400	241	218	479
FY-CLSG-50012			672	300	730	21890	400	241	218	598
FY-CLSG-6002	600	70	433	50	856	4282	430	266	228	475
FY-CLSG-6006			533	150	856	12845	430	266	228	568
FY-CLSG-60012			683	300	856	25690	430	266	228	707
FY-CLSG-8002	800	70	538	50	1217	6087	510	317	297	836
FY-CLSG-8006			638	150	1217	18260	510	317	297	966
FY-CLSG-80012			788	300	1217	36521	510	317	297	1160
FY-CLSG-10002	1000	70	565	50	1464	7322	560	343	299	1055
FY-CLSG-10006			665	150	1464	21966	560	343	299	1210
FY-CLSG-100012			815	300	1464	43932	560	343	299	1442
