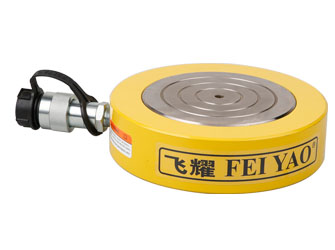

Ultra-thin Hydraulic Cylinder
-
※ Max. Working Pressure : 70 Mpa
※ Cylinder capacity : 35-100 T
※ Closed height : 35-41 mm
※ Stroke : 15 mm
Product Descriptions
Ultra-thin hydraulic cylinder with extremely low closed height, applys to limited space. It can be applied to replacing rubber bearings by synchronous lifting for expressway bridge maintenance, marine diesel engine maintenance and adjustment, wind power equipment maintenance and adjustment in power plant . Product Features
-
Dust-proof design, reduces contamination and extend cylinder life
-
Single-acting, load return
-
Working pressure: 70MPa
-
G1/4” coupler and dust cap included on all models.
|
Model |
Capacity |
Max. Working Pressure |
ClosedHeight |
Stroke |
Effective Area |
Oil Capacity |
OutsideDiameter |
PlungerDiameter |
CouplerHeight |
Weight |
|
(T) |
(MPa) |
(mm) |
(mm) |
(cm2) |
(cm3) |
(mm) |
(mm) |
(mm) |
(kg) |
|
FY-SLM-3515 |
35 |
70 |
35 |
15 |
50.2 |
75 |
150 |
80 |
17 |
5 |
|
FY-SLM-7015 |
70 |
70 |
35 |
15 |
103.8 |
156 |
185 |
115 |
17 |
7.5 |
|
FY-SLM-10015 |
100 |
70 |
41 |
15 |
153.8 |
231 |
210 |
140 |
19 |
11.2 |

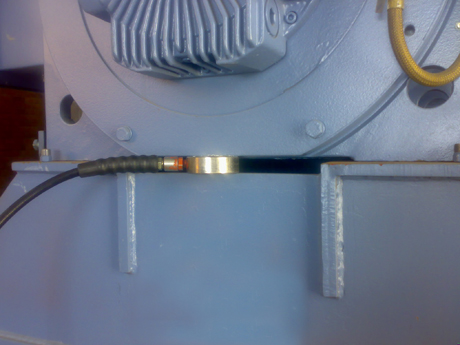

The field application of screw compressor maintenance
Changing rubber bearings by Synchronous lifting for bridge maintenance of Jiangsu section of Shanghai-nanjing expressway
