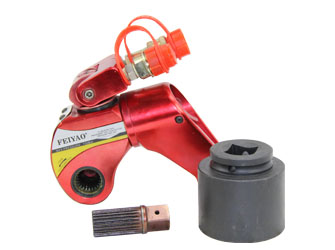

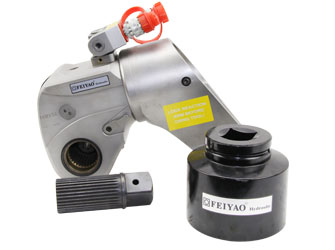

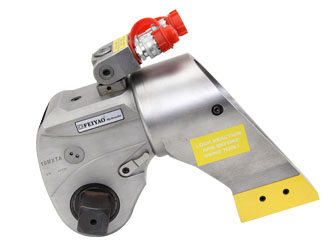

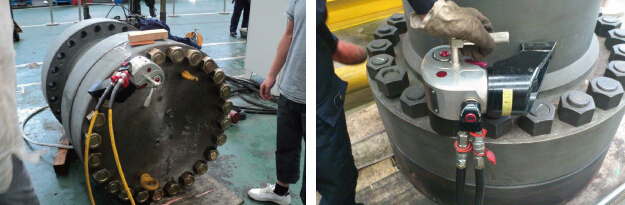

Square Drive Hydraulic Torque Wrench

※ Torque range : 183-48666Nm

※ Driving square : 3/4”-2-1/2”

※ Bolt diameter : M16-M115

Product Features

Patented integrated body design, moresturdy and durable
Rotary-return mechanism design, never-jam mechanism.
Hands-free operation, making the use more safety.
Slim nose radius and 360°×180° swivel hose connection allow easier positioning in confined space.
High repeatability, with accuracy±3%
360°reaction arm, makes the wrench get better supporting
Standard working pressure: 700par.

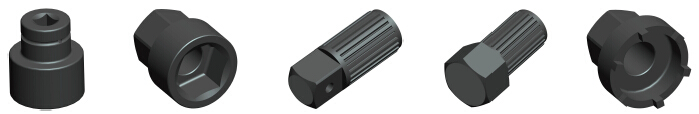

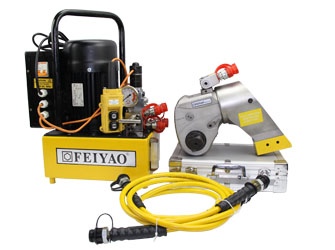

Supporting accessories


Square drive	Hexagon drive	Castle socket	Hex socket	Socket

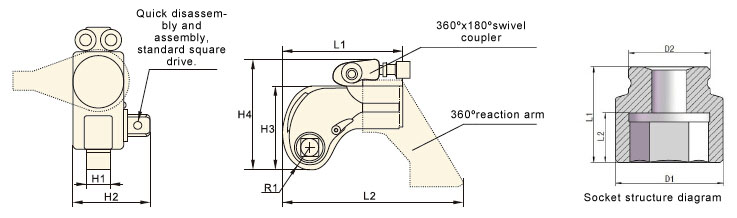

Model	Torque range N.M	Driving square In	H1 （mm）	H2 （mm）	H3 （mm）	H4 （mm）	L1 （mm）	L2 （mm）	R1 （mm）	Weight（kg）
FY-1MXTA	183-1837	3/4"	50	72	95.5	131	125	189	26	2
FY-3MXTA	451-4512	1"	68	95	127	176.5	160	242	35	4.4
FY-5MXTA	752-7528	1-1/2"	80	123	149	198.5	204	264	42	7.5
FY-8MXTA	1078-10780	1-1/2"	90	134	167	216.5	222	293	47	9
FY-10MXTA	1551-15516	1-1/2"	100	142	182	231.5	243	369	53	13
FY-20MXTA	2666-26664	2-1/2"	120	183	220	269.5	310	386	64	23
FY-25MXTA	3472-34725	2-1/2"	137	200	247	296.5	330	406	66	31
FY-35MXTA	4866-48666	2-1/2"	153	216	282	331.5	353	539	75	43

Socket Selection Table

Socket model	Wrench model	Square size	Bolt diameter M	Width across flats ㎜	L1 mm	L2 mm	D1 mm	D2 mm
FY-S24-F19	FY-1MXTA	3/4〞	M16	24	54	32	40	40
FY-S27-F19			M18	27	54	32	42	42
FY-S30-F19			M20	30	54	33	46	44
FY-S34-F19			M22	34	54	32	48	44
FY-S36-F19			M24	36	57	32	53	44
FY-S41-F19			M27	41	58	33	60	44
FY-S46-F19			M30	46	63	36	66	44
FY-S50-F19			M33	50	65	40	71	44
FY-S55-F19			M36	55	70	45	77	54
FY-S30-F25	FY-3MXTA	1〞	M20	30	59	32	54	54
FY-S34-F25			M22	34	59	32	58	58
FY-S36-F25			M24	36	62	32	59	59
FY-S41-F25			M27	41	65	38	67	54
FY-S46-F25			M30	46	65	38	74	54
FY-S50-F25			M33	50	70	43	79	60
FY-S55-F25			M36	55	80	52	84	60
FY-S60-F25			M39	60	85	57	89	60
FY-S65-F25			M42	65	85	58	98	70
FY-S70-F25			M45	70	90	62	104	70
FY-S75-F25			M48	75	95	65	108	70
FY-S24-F38	FY-5MXTA FY-8MXTA FY-10MXTA	1-1/2〞	M24	36	85	44	74	74
FY-S27-F38			M27	41	85	44	74	74
FY-S46-F38			M30	46	85	44	74	74
FY-S50-F38			M33	50	90	45	79	79
FY-S55-F38			M36	55	90	45	84	84
FY-S60-F38			M39	60	100	45	94	94
FY-S65-F38			M42	65	100	45	98	80
FY-S70-F38			M45	70	105	50	104	80
FY-S75-F38			M48	75	110	50	118	85
FY-S80-F38			M52	80	115	55	118	90
FY-S85-F38			M56	85	125	60	128	90
FY-S90-F38			M60	90	125	60	139	90
FY-S95-F38			M64	95	130	65	139	90
FY-S100-F38			M68	100	135	70	144	90
FY-S105-F38			M72	105	135	70	149	90
FY-S110-F38			M76	110	135	70	158	90
FY-S115-F38			M80	115	135	70	159	90
FY-S120-F38			M85	120	135	70	168	95
FY-S130-F38			M90	130	155	93	189	95
FY-S55-F63	FY-20MXTA FY-25MXTA FY-35MXTA	2-1/2〞	M36	55	100	57	86	114
FY-S60-F63			M39	60	100	52	119	119
FY-S65-F63			M42	65	100	52	119	119
FY-S70-F63			M45	70	120	67	128	128
FY-S75-F63			M48	75	120	67	128	128
FY-S80-F63			M52	80	130	71	128	128
FY-S85-F63			M56	85	130	71	128	129
FY-S90-F63			M60	90	140	73	139	139
FY-S95-F63			M64	95	140	73	139	139
FY-S100-F63			M68	100	140	81	149	130
FY-S105-F63			M72	105	150	89	149	130
FY-S110-F63			M76	110	150	90	158	130
FY-S115-F63			M80	115	150	98	168	130
FY-S120-F63			M85	120	150	98	178	130
FY-S130-F63			M90	130	170	98	188	130
FY-S135-F63			M95	135	170	114	198	130
FY-S145-F63			M100	145	170	122	210	152
FY-S150-F63			M105	150	190	140	216	152
FY-S155-F63			M110	155	190	140	229	152
FY-S165-F63			M115	165	190	140	241	152
