Single Acting Multistage Hydraulic Cylinder

※ Max. Working Pressure : 70Mpa

※ Cylinder capacity : 10-50T

※ Closed height : 250-390mm

※ Stroke : 135-600mm

Product Details
Parameters

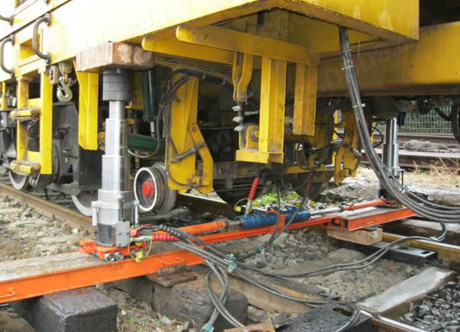

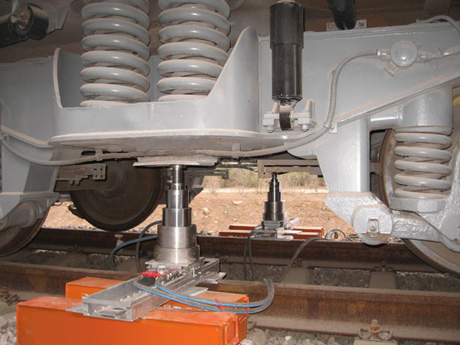

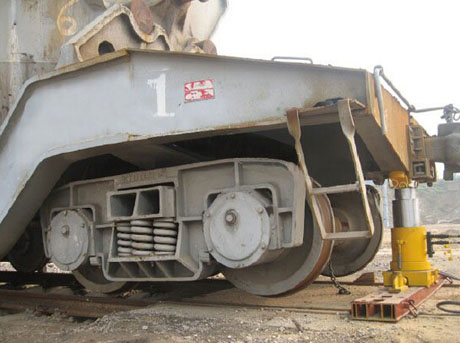

Case

Product Descriptions

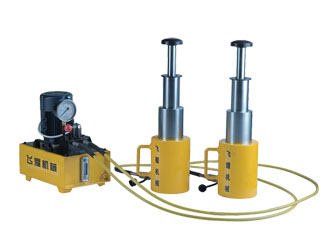

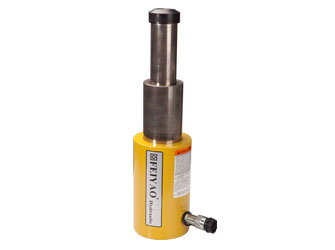

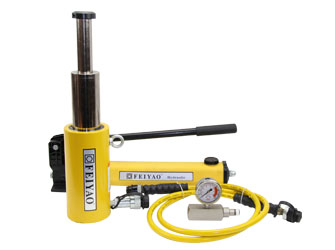

Single acting multistage hydraulic cylinder can be used in confined areas to carry out a long stroke lifting operation, separable structure, multistage lifting, single acting and load return. Product Features

Compact structure, wide range of uses; single acting ,load return; can not be used horizontally or reversely.
Plunger seal groove size and tolerance in line with national standards GB/T2879-2005/ISO 5597:1987;
The experimental method is in line with the national standard GB/T 15622-2005.
3/8 "- 18NPT coupler and dust cap included on all models.

Model	Capacity Max. (T)	Stage number	Stroke (mm)	Capacity at every stage (T)	OutsideDiameter (mm)	ClosedHeight (mm)	Oil Capacity (cm3)	Weight (kg)
FY-RCD-10A	10	2	270	10	110	250	810	18
		1	135	30
FY-RCD-10B	10	3	435	10	152	280	2250	40
		2	290	30
		1	145	60
FY-RCD-15A	15	2	300	15	125	280	1308	28
		1	150	40
FY-RCD-15B	15	3	500	15	175	320	3543	60
		2	340	40
		1	170	80
FY-RCD-30A	30	2	300	30	152	304	2088	45
		1	150	60
FY-RCD-30B	30	3	600	30	220	366	6803	106
		2	400	60
		1	200	135
FY-RCD-50A	50	2	200	50	170	350	3800	68
		1	150	100
FY-RCD-50B	50	3	600	50	230	390	9500	152
		2	400	100
		1	200	190
