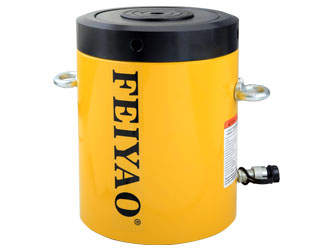

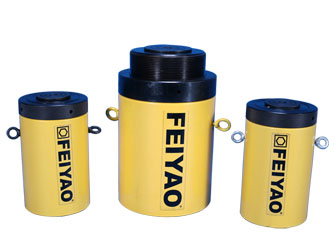

Single Acting High Tonnage Lock Nut Hydraulic Cylinder

  • ※ Max. Working Pressure : 70 MPa

    ※ Cylinder Capacity : 50~1000 T

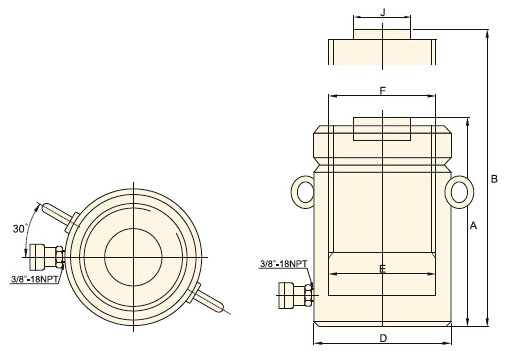

    ※ Closed Height : 164~745 mm

    ※ Stroke : 50~300 mm

Product Descriptions

Piston of single acting high tonnage lock nut hydraulic cylinder with mechanical locking function and safe mechanical load holding over a long period of time. Product Features

  • Single acting ,load return.
  • Safety lock nut for mechanical load holding, can be locked at any position by mechanical nut within the stroke, ensure safe operation.
  • Optional special synthetic coating for improved corrosion resistance and lower friction for smoother operation to speed up the return speed.
  • Special bearing design withstands side-load up to 5% .
  • Overflow port functions as a stroke limiter.
  • Interchangeable, hardened grooved saddles are standard, can be configured 5°ball type saddle to adapt to imbalance load conditions.
  • Dust ring reduces contamination, extending cylinder life.
  • Optional manual valve to ensure the safety of the process of lifting and falling.
  • 3/8 "- 18NPT coupler and dust cap included on all models.
