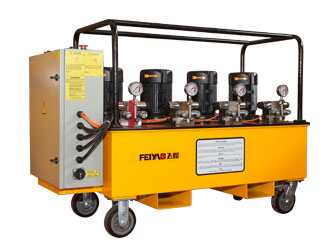

Special Electric Hydraulic Pump for Engineering Hydraulic Cylinder

※ Working pressure: 31.5Mpa

※ Flow: 3-144L/min

※ Oil tank capacity: 51-1594L

※ Motor power: 3-30*4KW

Product Descriptions

Special electric hydraulic pump for engineering hydraulic cylinder is pray coating, anti-corrosion, pollution-resistant, durable. Lightweight and compact design make it easy to be moved. Double speed pump design, with the high flow in low pressure. The actuator can be fast moved on no-load status.Internal precise high and low pressure automatic reversing valve and external adjustable pressure valve to make it easy to calibrate the working pressure and avoid the over load. The motor starter has the function of preventing overload, overheat and leakage. The pump can be matched with both double acting and single acting cylinders. Choosing the solenoid valve electric hydraulic pump, remote operation can be realized.

Model	Working Pressure (Mpa)	Flow (L/min)	Motor Power (KW)	Motor Speed (r/min)	Oil Tank Capacity (L)	Oil Tank Dimensions (mm)			Dimensions (mm)			Weight (kg)
Model	Working Pressure (Mpa)	Flow (L/min)	Motor Power (KW)	Motor Speed (r/min)	Oil Tank Capacity (L)	Length	Width	Height	Length	Width	Height	Weight (kg)
FY-DBZ-300	31.5	3	3	1470	51	500	400	300	570	460	650	104
FY-DBZ-400	31.5	4	4	1470	51	500	400	300	570	460	660	106
FY-DBZ-550	31.5	5	5.5	1470	164	750	550	470	790	640	850	226
FY-DBZ-750	31.5	6	7.5	1480	164	750	550	470	790	640	890	236
FY-DBZ-1100	31.5	15	11	1480	191	800	600	470	840	700	950	294
FY-DBZ-2200	31.5	30	11×2	1480	433	1200	850	500	1240	950	980	596
FY-DBZ-1800	31.5	24	18.5	1480	291	1000	700	490	1040	830	1050	398
FY-DBZ-3700	31.5	48	18.5×2	1480	433	1200	850	500	1220	950	1060	684
FY-DBZ-5400	31.5	72	18.5×3	1480	850	2000	1000	500	2000	1130	1220	1214
FY-DBZ-7200	31.5	96	18.5×4	1480	1226	2500	1200	520	2500	1340	1190	1610
FY-DBZ-3000	31.5	36	30	1480	450	1200	850	520	1230	950	1220	622
FY-DBZ-6000	31.5	72	30×2	1480	850	1200	1000	500	2000	1130	1200	872
FY-DBZ-9000	31.5	108	30×3	1480	850	2000	1000	500	2000	950	1200	1496
FY-DBZ-12000	31.5	144	30×4	1480	1594	2500	1500	500	2530	1600	1200	2048


Synchronous pushing of shield machine	Synchronous pushing of shield machine


Synchronous pushing and translation of historic building	Trenchless underground pipe pushing
