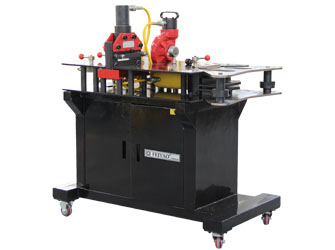

Multifunctional Busbar Processing Machine
-
※ Working pressure: 70Mpa
※ Voltage: 220V/50Hz, single phase
※ Cutting capacity: 25T
※ Punching capacity: 30T
※ Bending capacity: 15-25T

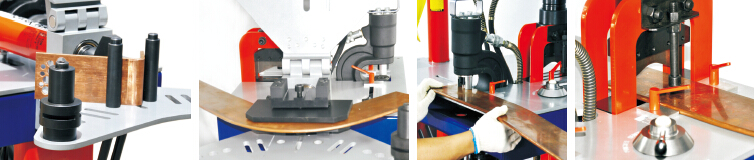

Product Features
-
Bending angle can set within 1-120º, with pedal control switch;
-
Safe operating system, operating without worrying about security;
-
Easy to replace the molds based on different work, improving the work efficiency;
-
With 70Mpa hydraulic system, of low noise, strong work, durable use;
-
The open workbench ensures the work-piece does not deflect after bending;
-
Punching without flash, cutting off with formation, fished with precised angle, a large number of busbar processing can be quickly repeated;
-
Equipped with cutting and punching double positioning ruler, bending and bending angle mark ruler.
|
Model |
Functions |
Voltage |
Working Pressure (Mpa) |
Cutting Capacity (T) |
Punching Capacity (T) |
Bending Capacity (T) |
Weight (kg) |
Cutting Ability (mm) |
Horizontal Bending Ability (mm) |
Vertical Bending Ability (mm) |
Bending Ability |
|
FY-JGJ-3 |
Cutting、Punching Horizontal bending |
Single phase 220V 50Hz |
70 |
25 |
30 |
15 |
115 |
Cu/Al: 150×12 |
Cu/Al: 150×12 |
/ |
/ |
|
FY-JGJ-4 |
Cutting、Punching Horizontal bending、 Vertical bending |
Single phase 220V 50Hz |
70 |
25 |
30 |
25 |
153 |
Cu/Al: 150×12 |
Cu/Al: 125×16 |
Cu/Al: 125×12 |
/ |
|
FY-JGJ-5 |
Cutting、Punching Horizontal bending、 Vertical bending |
Single phase 220V 50Hz |
70 |
25 |
30 |
25 |
160 |
Cu/Al: 150×12 |
Cu/Al: 125×16 |
Cu/Al: 125×12 |
3" |
|
Model |
Punching Thickness
(mm) |
Standard Punching Dies
(mm) |
Bending Dies |
Platform Size
(mm) |
Optional Accessories
(mm) |
|
FY-JGJ-3 |
4-13 |
Φ10.5、Φ13.5
Φ17.5、Φ20.5 |
/ |
910×600×1000 |
Φ8.5、Φ11.5
Φ15.5、Φ18.5
punching die |
|
FY-JGJ-4 |
4-13 |
Φ10.5、Φ13.5
Φ17.5、Φ20.5 |
Horizontal bending mould 1 piece、Vertical bending mould base 1 set、Vertical bending mould 8 pieces(40-80×4、40-80×5、40-80×6、40-80×8、40-80×10、100×10、100-125×10、120-125×12)、Vertical beding supporting block 6 pieces (4、5、6、8、10、12) |
910×660×1160 |
Φ8.5、Φ11.5
Φ15.5、Φ18.5
punching die |
|
FY-JGJ-5 |
4-13 |
Φ10.5、Φ13.5
Φ17.5、Φ20.5 |
Horizontal bending mould 1 piece、Vertical bending mould base 1 set、Vertical bending mould 8 pieces(40-80×4、40-80×5、40-80×6、40-80×8、40-80×10、100×10、100-125×10、120-125×12)、Vertical beding supporting block 6 pieces (4、5、6、8、10、12)、Bending mould 7 pieces (1/2、3/4、1、1 1/2、2、2 1/2、3) |
910×760×1160 |
Φ8.5、Φ11.5
Φ15.5、Φ18.5
punching die |
